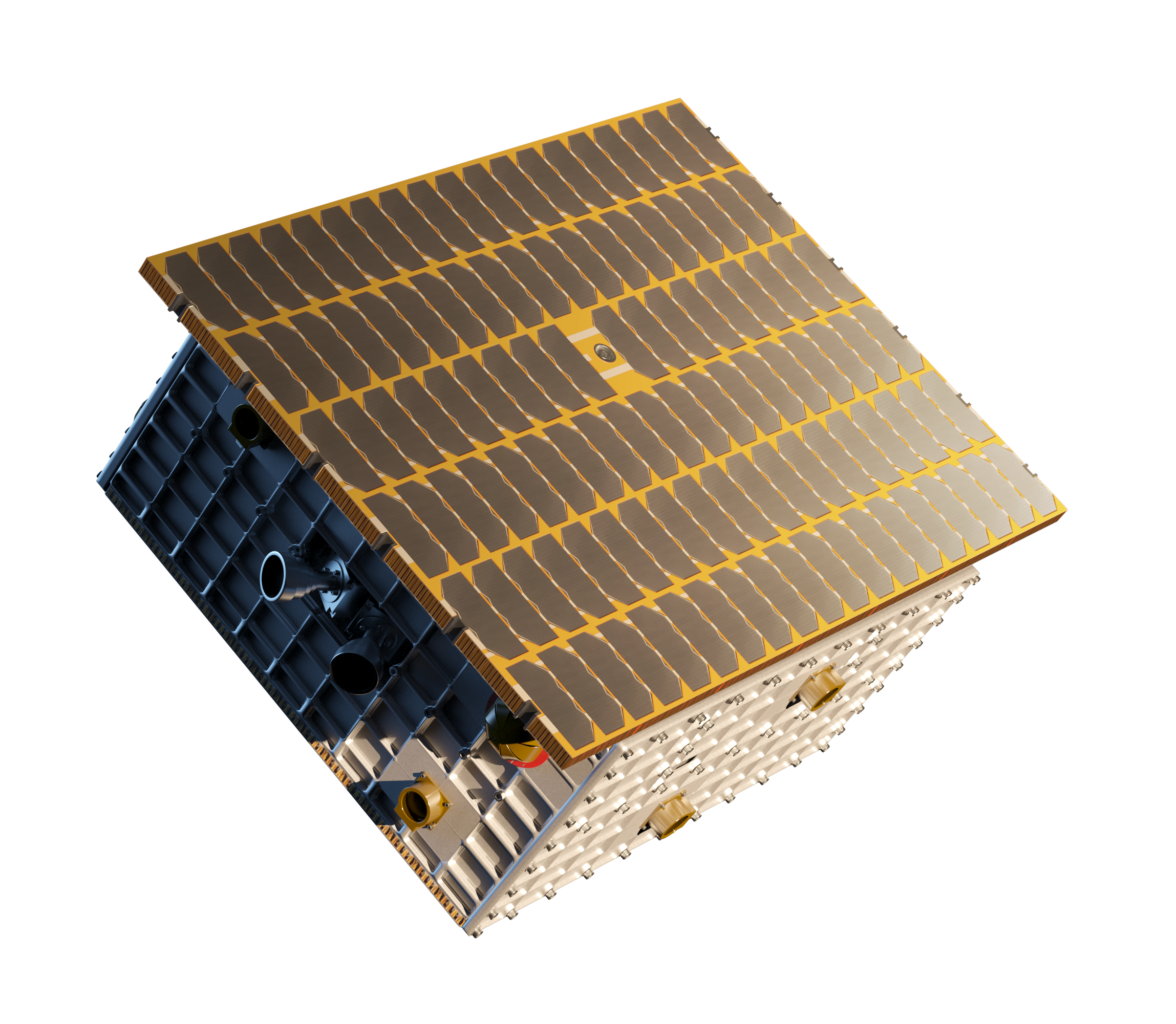

Meet the OmniFlex Baseline Configuration
From Vision to Satellite in 12 Months. Our Baseline Configuration.
Reflex is not just a satellite manufacturer — we’re a creator of possibilities. We craft high-performance satellite platforms, each one tailor-made, each one a testament to our commitment to innovation.
The Highlights
Customized payload-centric platform designs accommodating any size and geometry.
Delivery time of 1st unit within 12 months. Subsequent serial production possible.
Platform allows payloads up to 250 kg.
Single or multi-payload capabilities.
Compatibility with a variety of launch vehicles.
-
CIVIL & DEFENCE
Remote Sensing
Satellite Communications
LEO PNT
Space Tug
-
In-orbit image processing and analysis ready
AI-application compatible
Linux-based OS
Security by design
SW-defined architecture
Full redundancy
-
Reflex follows all relevant space debris mitigation guidelines.
The Specs
BASELINE CONFIGURATION
| Orbit | Full Range of LEO |
| Lifetime (Design) | 3+ Years (LEO) |
| Total Satellite Mass | 75-150 kg |
| Payload Mass | Up to 50kg |
| Payload Volume | Up to 0.2m2 |
ONBOARD DATA HANDLING
| Unit | Reflex ARC |
| Data Processing | Multi-core ARM-based Architecture |
| Primary Data Interface | Ethernet |
| Storage | 1 TB Redundant Storage |
ATTITUDE, POSITION, and ORBIT CONTROL
| Architecture | Agile 3-axis Stabilized |
| Pointing Accuracy | 0.1 deg (3σ) |
| Pointing Knowledge | 0.01 deg (3σ) |
| Agility | 2 deg/s |
| Position Knowledge | < 1m |
| Propulsion | Electric |
PAYLOAD POWER
| Nominal | 150 W |
| Peak | 300+ |
COMMUNICATIONS
| TMTC | S-Band |
| Payload Data | X-Band |
| Payload Data Downlink Rate | Up to 200 Mbps |
Options
BEYOND
Extended design lifetime to 7+ years
EXTENDED POWER
Upgrade payload power into kW range
PROPULSION
Tailored solutions of thrust and delta-v levels for any mission profile
COMMUNICATIONS
Utilize Optical Data Links (Space2Space) and/or high-throughput X/Ka/Ku-Band RF.
BEAST
Scalable power system
