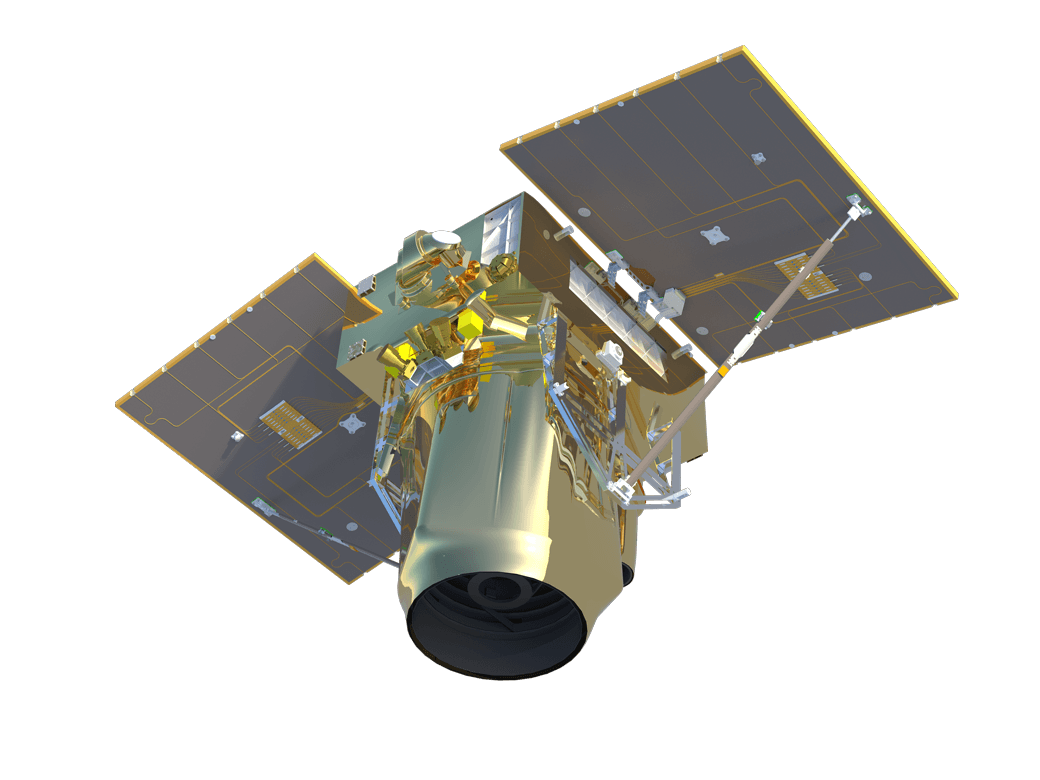

Illustration of a space satellite with an earth observation camera mounted to it with solar panels extended on either side.

Meet the OmniFlex UltraSharp for Earth Observation

From Vision to Insight. A Very High Resolution EO Sat

Reflex’s High-Precision (OmniFlex HiPr) platform in combination with an outstanding VIS-NIR payload are developed to enable your very high-resolution (VHR) Earth observation applications.

Recommended Civil & Defense Target Applications

A detailed illustration of a satellite with gold-colored panels and instruments, featuring two large solar panels on either side and various antennas and electronic components.

2D and Stereo Imaging
Infrastructure Monitoring
Change Detection

Border Surveillance
Target Detection
Disaster Detection and Management

- 4 high-torque CMGs for outstanding stability and pointing accuracy
- 10x more angular acceleration than Reaction Wheels (RWs)
- 3x more AOI coverage
- Higher revisit time / reduced constellation size
- Reflex's Autonomous Reconfigurable Computer (ARC) with in house developed avionics unit
- Multi-core ARM-based architecture
- Security by Design with Linux-based OS
- SW-defined architecture for in-orbit mission adaption
- Full redundancy and 1 TB of redundant storage
- In-orbit image processing and analysis ready
- AI application compatible
Reflex follows all relevant space debris mitigation guidelines.

The Specs

MISSION LAYOUT


        Orbit
        450 - 1000 km

        Inclination
        SSO or Individual

        Lifetime
        5+ Years

        Configuration
        Single or constellation rollout possible

PAYLOAD


        GSD
        50 cm native/30 cm processed (PAN @500km)

        Swath
        16 km (@500 km)

        Spectrum
        6 MS + PAN (VIS/NIR)

        Detector
        CIS 125 (Teledyne e2v)

        Pixel Size/Number
        5μm / 16000 per line

        TDI Images
        Max. 64 in PAN

ATTITUDE, POSITION, and ORBIT CONTROL


        Pointing Accuracy
        < 0.01 deg (3σ)

        Pointing Knowledge
        < 0.005 deg (3σ)

        Pointing Stability
        < 0.001 deg/sec (3σ)

        Agility
        up to 4 deg/s

        Angular Acceleration
        up to 6 deg/s2

        Position Knowledge
        < 1m

        Propulsion
        Electric

PLATFORM


        Wet mass
        185 kg

        Power (nominal)
        250 W

        Power (peak)
        1kW+

COMMUNICATIONS


        TMTC
        S-Band

        Payload Data
        X-Band

        Payload Data Downlink Rate
        Up to 200 Mbps

Options

Extended design lifetime to 7+ years

Adapted propulsion (thrust, delta-v) for any mission profile.

Extended on-board data storage up to 4 TB

Adapted GSD & swath width with optional payloads.

Scalable power system

Optional secondary payloads for extended missions (e,g, hyperspectral, SWIR, IOT, AIS/VDES).

High-throughput Ka/Ku or optical (S2S, S2G) data links
