Marble Sat-1: High-Resolution Earth Observation for Sustainability

Our partnership with Marble Imaging is delivering VHR EO Data to Europe

Marble Imaging selected Reflex Aerospace as their satellite manufacturer for their upcoming very-high resolution (VHR) Earth observation satellite following their victory in the German Aerospace Center's small satellite payload competition (Kleinsatelliten-Nutzlastwettbewerb der Deutschen Raumfahrtagentur im DLR).

The MIRI mission, which will design and manufacture Marble Sat-1, represents the first step in Marble Imaging's goal to deploy a 20-satellite EO constellation.

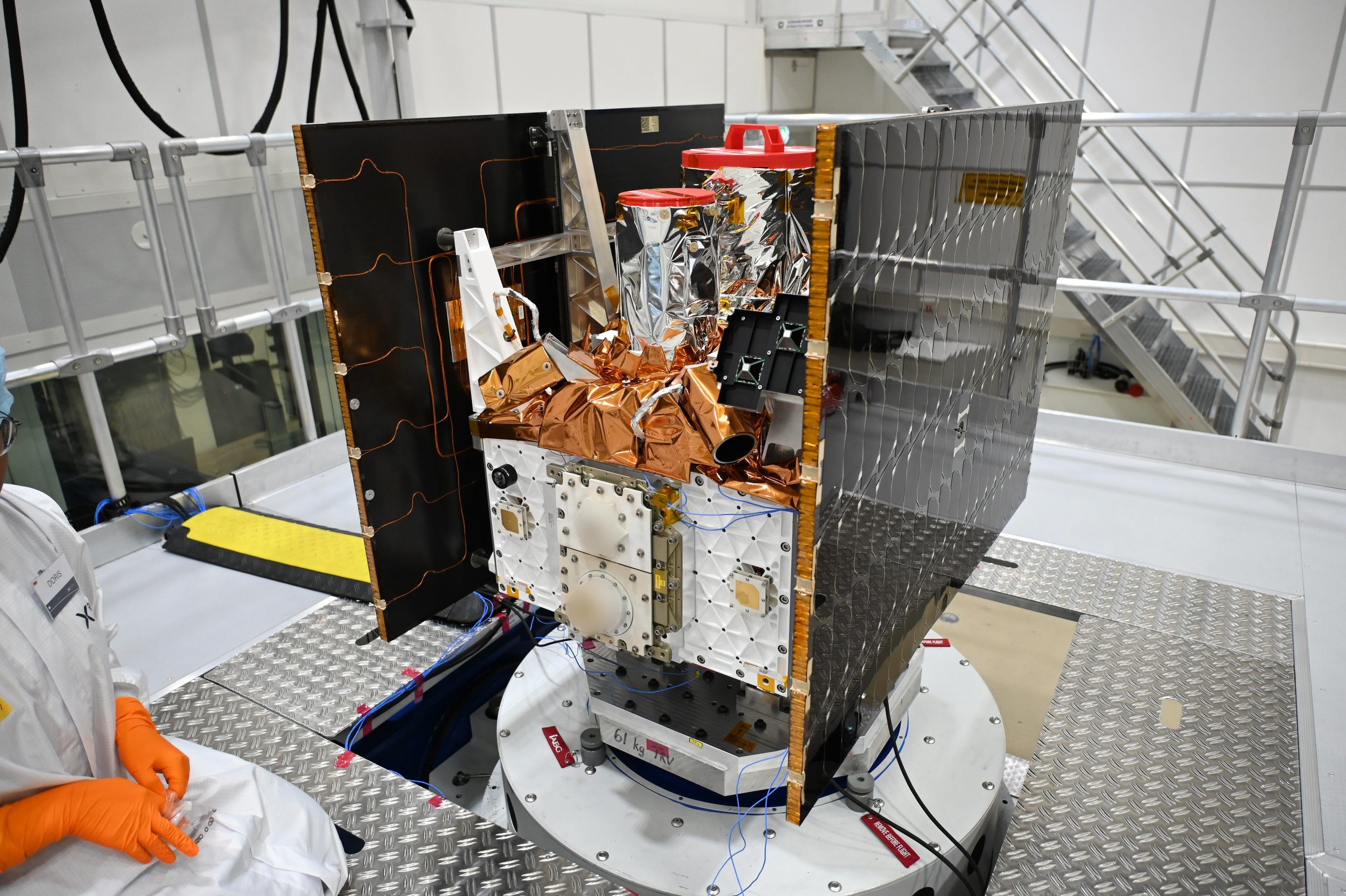

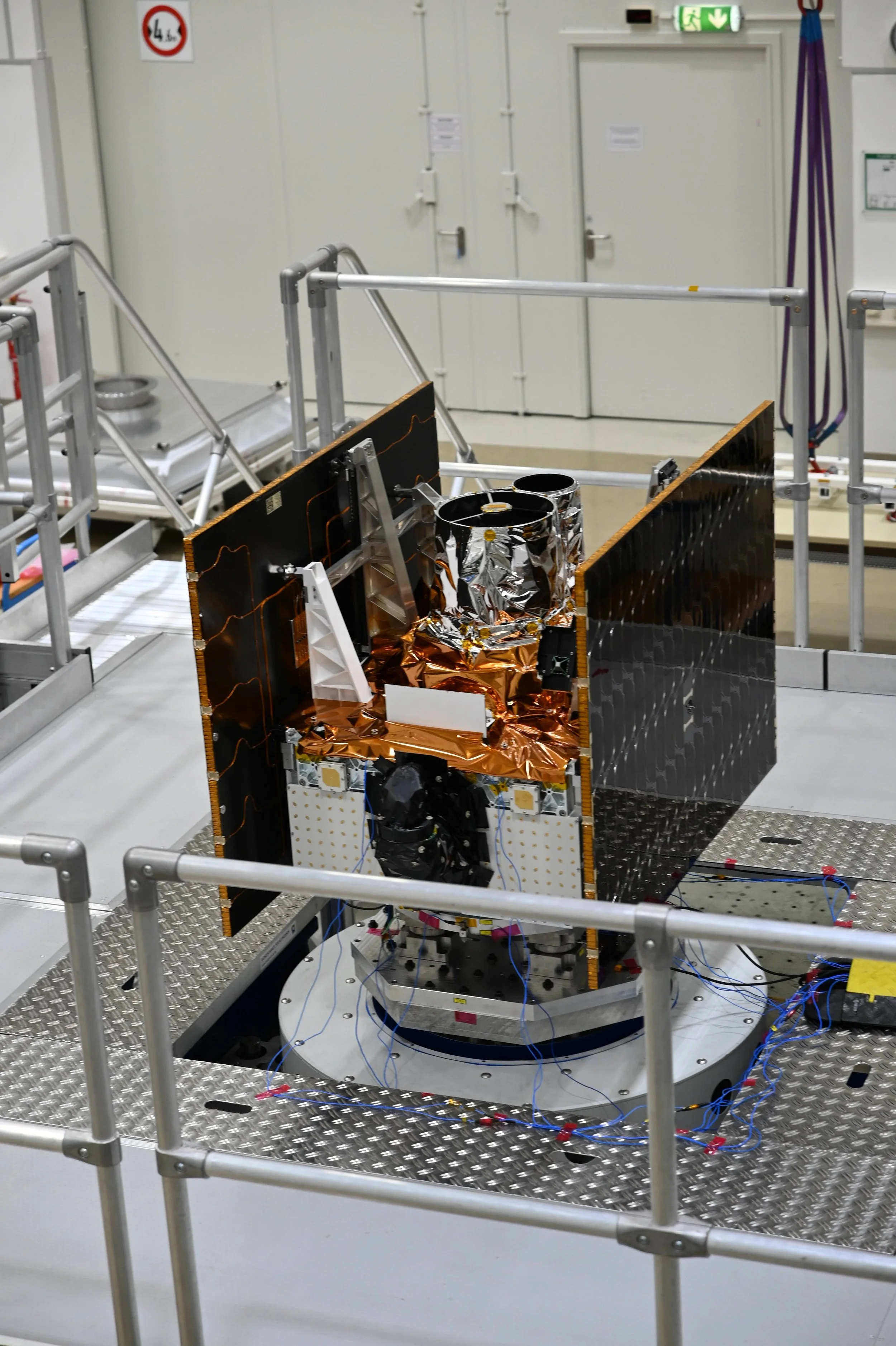

A detailed image of a Reflex Aerospace's MIRI satellite mission with solar panels, gold-colored MLI, and payload instruments against a background.

Marble Sat-1: High Resolution.
No Compromises.

The MIRI mission is designed from the ground up to satisfy Marble Imaging’s unique mission objectives.

500 km Sun Synchronous orbit
LTAN 10:30
3 year mission duration; 5 year optional
Total Mass: Approx. 145 kg
1200 W Peak Power
780 Wh Usable Battery Capacity
600 W Solar Array Nominal Power Generation
S-band TMTC at 1 Mbit/s, Uplink 128 kbit/s
X-band up to 400 Mbit/s
